Each site that needs energy management comes with it's own set of complexity, we call this a process of "aligning the stars" -
To find the right solution, for the right period, under the right circumstances, utilising the right technology and point us to our true north.

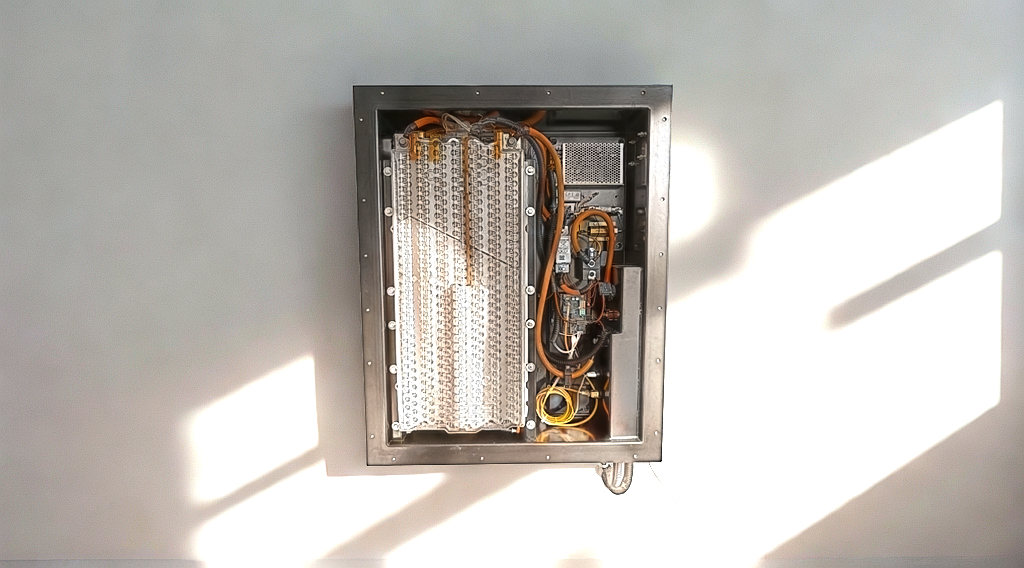

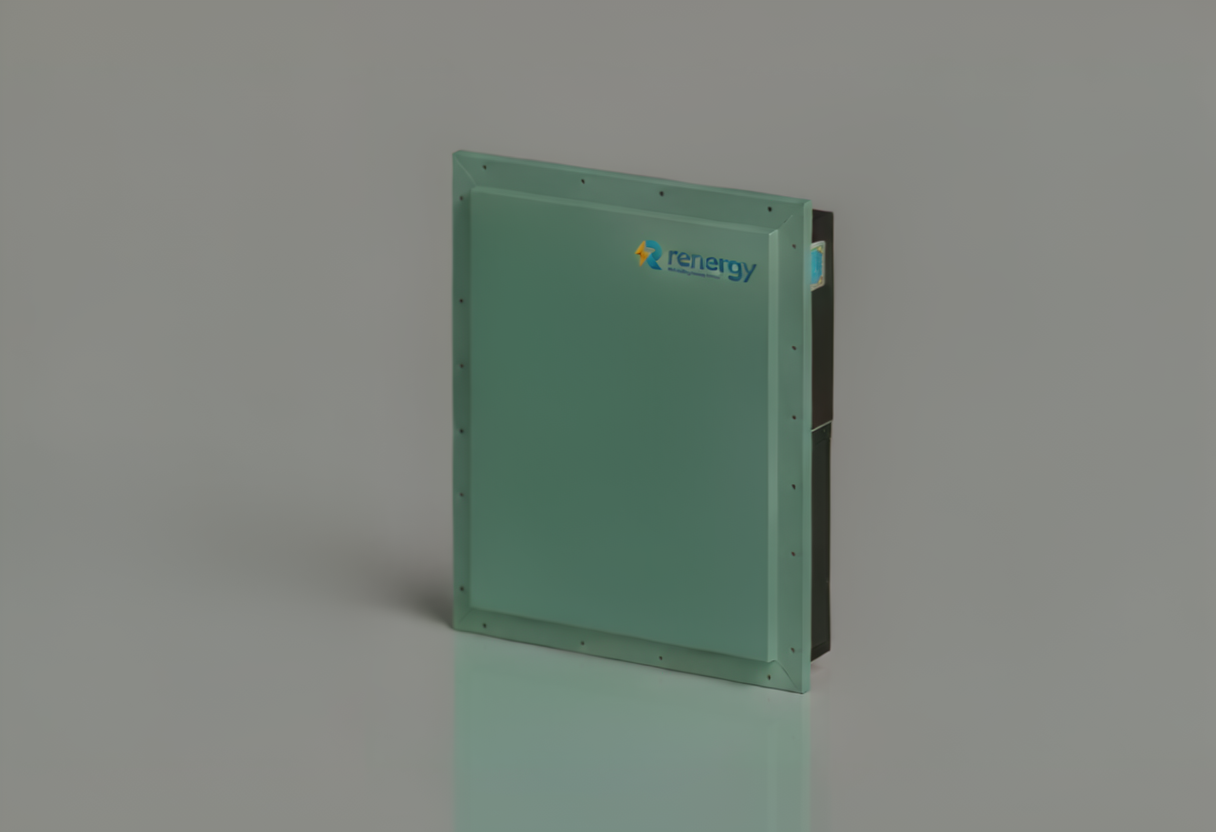

Introducing Renergy R10
The R10 is our pioneer product for addressing residential energy security.
Model
R10-2428T01
Version
Tesla, Founders Edition (T01)
Nominal Battery Energy
10 kWh
Battery Modules
Tesla Model S 90D,
manufacture year: 2017
Nominal Battery Voltage
43.2 V
Maximum Continuous Current
110 A
Scalability
Up to 8 Expansion units supported
Connectivity
Wi-Fi (2.4 Ghz), Cellular (4G)
Protections
Inverter precharge, fault circuit contactors
Operating Temperature
10°C to 50°C
Operating Humidity (RH)
Up to 90%, condensing
Environment
Outdoor, weatherproof
Dimensions
681.5 (W) x 847.5 (H) x 211 (D) mm
Weight
100 kg
Mounting
Wall mount, M8 Bolt
Model
Schneider Easypact EZC250H
Short-Circuit Current Rating
15 kA
Dimensions
300 (W) x 250 (H) x 150 (D) mm
IP Degree of Protection
IP55 conforming to IEC 60529

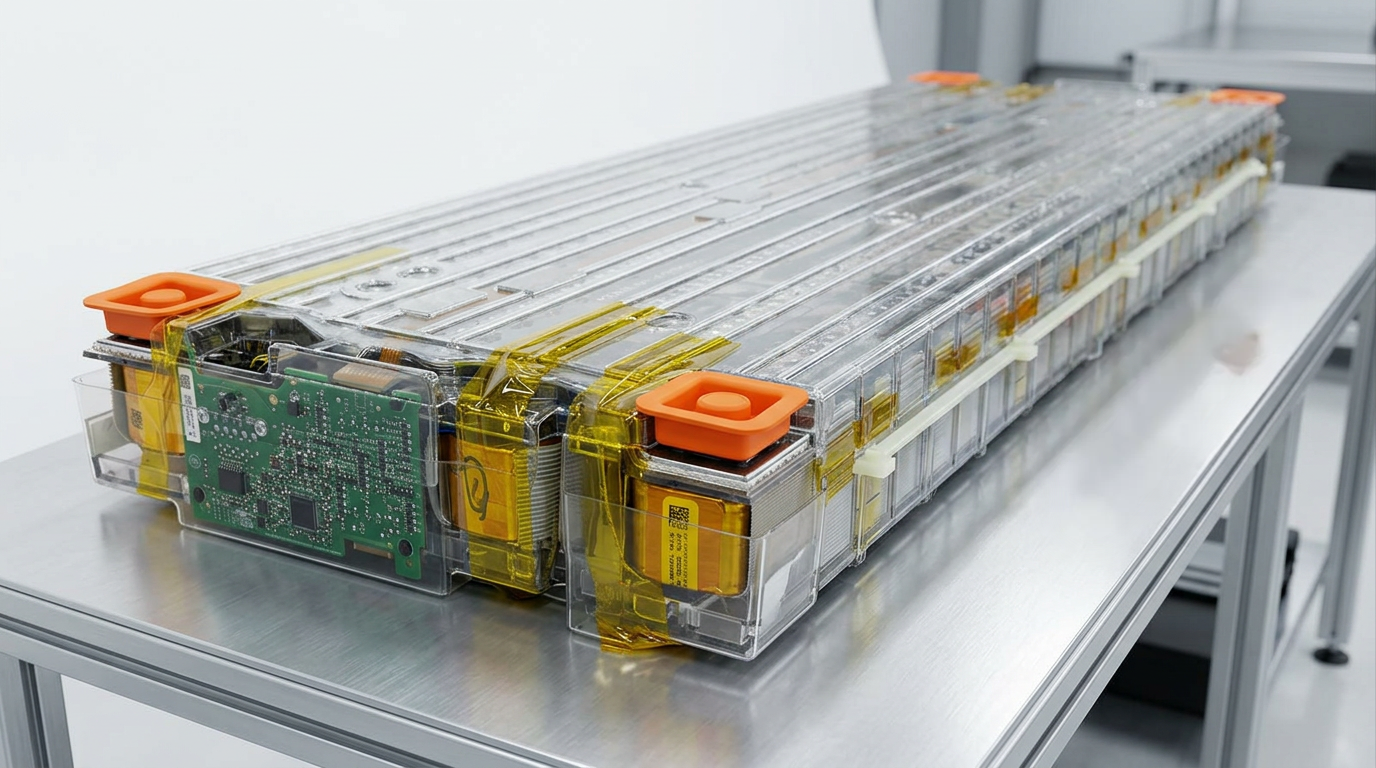

Our approach relies on our ability to re-build CAN communication with the existing BMS in the battery pack.
We build interfaces that enable the BMS to trigger it's internal contactors to open or close the circuit in the event of a fault.
We build systems in consideration of mechanical, electrical, and control perspectives.
